Slitter Rewinder Machine

Slitter Rewinder Machine


Standard Features

Slitter Rewinder Machine

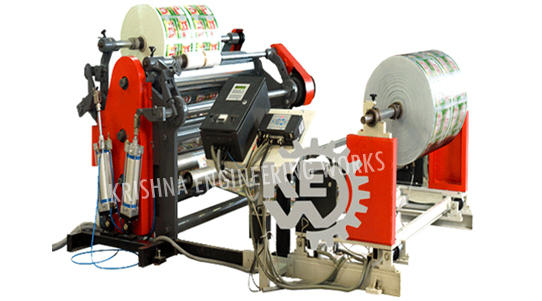

KEW Slitter Rewinder Machine is a Cantilever Type which incorporates a range of superior design feature that ensures the highest possible quality for the final split roll Independent rewind tension control through non-contact ultra-sonic techniques for diameter measurement and unique core lock for the differential slip at running speed. The design incorporates the three motor control system & unwind pneumatic brake with load cell feed brake Digital Edge/line guiding to achieve high-speed correction. High Performance and hi-speed and heavy duty Slitter Rewinder Machine Manufacturer with custom application related requirement. We design custom application related all type of heavy-duty slitting rewinding machines with Rubber Roller.

Manufacturing production with high-speed features and with the aim to target International standards of quality. All our engineer’s deals and focused on quality production with rich industry experience. High skilled professionals with excellent knowledge of the requirement for different industries. All type of slitter rewinder machines are special quality machines, designed and created for special applications.

Slitter Rewinder Machine for various materials:

  • Plastic
  • Paper
  • PVC
  • Aluminum Foil
  • Stretch Films
  • Polyester Film
  • LDPE Film
  • BOPP Film
  • BOPP Tape
  • OPP CPP Films
  • METPET Film
  • PET Film
  • OPA Film M
  • Non Woven Fabric
  • Woven Sack
  • Paper Board
  • Adhesive Tape
  • Film Ribbon
  • Textile Cloth
  • Nylon Fabric
  • Micro Tape
  • Coated Paper
  • Ice Cream Cup Paper
  • Fax Roll Paper
  • Laminated Film
  • Cling Film

Technical Specification

Max. Working width : 800 to 2000 mm
Unwind Dia. : 1000 mm
Rewind Dia. : 500
Min. Slitting width : 50 mm
M/C speed : 300 / 500 M / min
